Diamond Antenna Products

Base Station Antennas VHF/UHF (Fixed)
Model No.	Frequency	Gain	Type

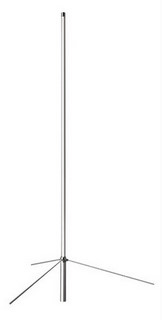

BC-100 Max. power rating: 200W Impedance: 50ohms VSWR: Less than 1.5 : 1 Length: 1.7m Weight: 0.9kg Rated wind velocity: 60m/sec. Connector: MJ Type: omnidirectional ,FRP outershell	134-174 MHZ	4.50 dBi	VHF Amateur

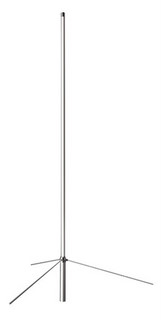

BC-100S Max. power rating: 200W Impedance: 50ohms VSWR: Less than 1.5 : 1 Length: 1.7m Weight: 1.2kg Rated wind velocity: 60m/sec. Connector: MJ Type: omnidirectional ,FRP outershell	115-174 MHZ	3.40 dBi	VHF Air Band And Amateur
BC-200 Max. power rating: 200W Impedance: 50ohms VSWR: Less than 1.5 : 1 Length: 1.7m Weight: 0.9kg Rated wind velocity: 60m/sec. Connector: MJ Type: omnidirectional ,FRP outershell	430-490 MHZ	6.50 dBi	UHF Base Antenna
BC-202 Max. power rating: 200W Impedance: 50ohms VSWR: Less than 1.5 : 1 Length: 1.15m Weight: 0.75kg Rated wind velocity: 55m/sec. Connector: MJ Type: Stacked GP	430-490 MHZ	6.50 dBi	UHF Base Antenna

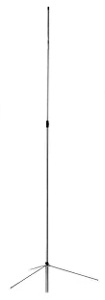

CP-22E Max. power rating: 200W Impedance: 50ohms VSWR: Less than 1.5 : 1 Length: 2.7m Weight: 1.1kg Rated wind velocity: 70kmph. Connector: UHF Type: Stacked GP	144-174 MHZ	6.50 dBi	VHF Amateur

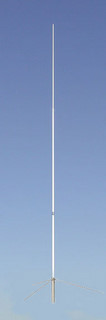

F-22 Max. power rating: 200W Length: 10ft 5" Weight: 1.5kg Rated wind velocity: 112kmph. Connector: UHF Type: VHF Base Antenna	144-174 MHZ	6.70 dBi	VHF Amateur
F-23 Max. power rating: 200W Length: 15ft Weight: 1.9kg Rated wind velocity: 90 kmph. Connector: UHF Type: VHF Base Antenna	144-174 MHZ	7.80 dBi	Omni VHF Band
